©2002 Maytag Appliances Company 16021520 Rev. 0 A–5

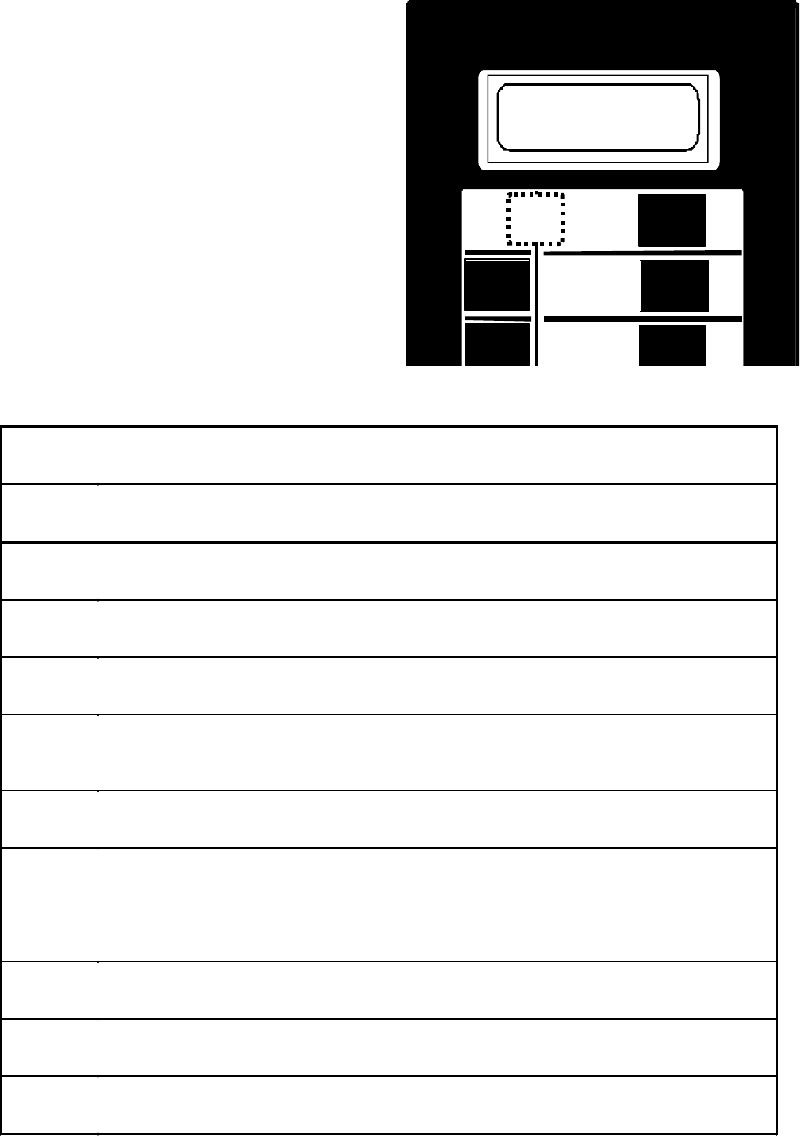

User Options
1. Open oven door.
If door is closed or RESET pad is pressed before
finishing programming sequence, oven exits
programming mode.
2. Press and hold pad 1 for approximately 15 seconds.
After 15 seconds, signal sounds. Display shows
“P”.
3. Press hidden pad.
Displays shows “OP:1(0,1-3)”.
OP” represents optional program mode, first
number represents option number and second
number represents functions currently selected for
option.
4. Press START pad to advance to next option. See
table for options.
5. Press number pad (0,1-3) to change option.
6. Press START pad to save changes.
Repeat steps 4-6 to change additional options.
7. Press RESET pad or close oven door to exit
programming mode.
Numbered Display Options
Pads ( ) = Factory Settings
1 OP:10 Prevents adding heating time while oven is heating.
OP:11 (Allows adding heating time while oven is heating.)
2 OP:20 Sounds 3 second signal at end of heating cycle.
OP:21 (Sounds 4 short signals at end of heating cycle.)
3 OP:30 (Allows 99 minutes 99 seconds of heating time.)
OP:31 Allows 10 minutes of heating time.
4 OP:40 Prevents signal when pad is pressed.
OP:41 (Allows signal when pad is pressed.)
5 OP:50 (Allows oven to resume heating time countdown after door is opened
during cycle.)
OP:51 Cancels heating time count down after door is opened during cycle.
6 OP:60 (Allows power levels to be used.)
OP:61 Prevents use of power levels.
7 OP:70 Eliminates end of heating cycle signal.
OP:71 Sets end of heating cycle signal volume to low.
OP:72 Sets end of heating cycle signal volume to medium.
OP:73 (Sets end of heating cycle signal volume to high.)
8 OP:80 Sets oven to standard operation. Blower starts when oven operates.
OP:81 (Sets oven to instant on operation. Blower starts when oven door is opened.)
9 OP:90 (Allows use of variable time entry and preprogrammed pads.)
OP:91 Allows use of preprogrammed pads only.
0 OP:00 (Allows pads to be deactivated.)
OP:01 Prevents pads from being deactivated.
1
2
3
Hidden
Pad
DEFROST
20%
HOLD
0%
88:88
MICRO DEFR WARM MEDHI
POWER
HOLD
TIMER
READY
CLOCK
COOK
LEVEL
8
Programming Instructions for RCS10MP, P1140412M
RCS10MPS, P1324901M
