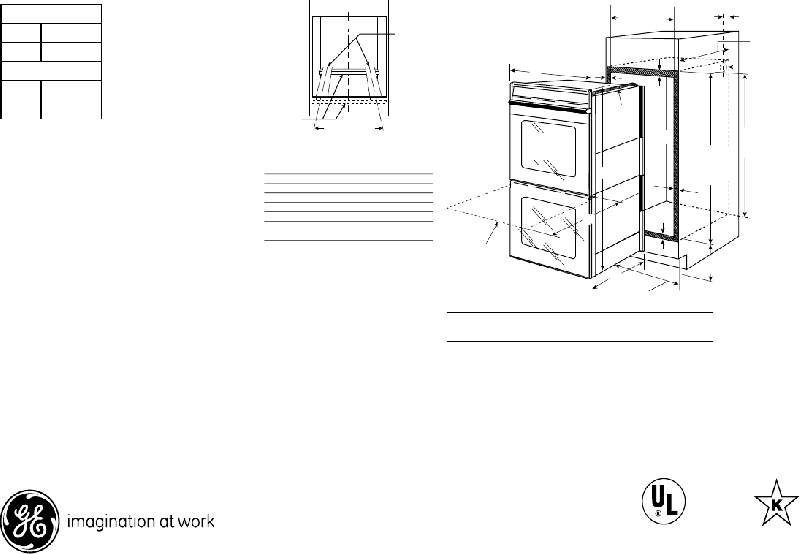

Dimensions and Installation Information
For answers to your Monogram,
®
GE Profile
or
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 7/10
220151
KW Rating
240V
7.6
208V
5.7
Breaker Size
240V
40 Amps
208V
40 Amps
PT960SR
GE Profile
30" Built-In Double Convection Wall Oven
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating. Electric wall ovens are
not approved for installation with a plug and
receptacle. They must be hard wired in accordance
with installation instructions.
Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be
placed to avoid interference with the handle.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
21" minimum
Door Opening
Allowance
B
B
A
A
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Minimum cutout location
12" from the floor.
Cutout depth
23-1/2" MIN
5
47" to
bottom of
junction box
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
21
Cabinet
width 30"
C
E
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Conduit
48-1/2"
Junction box
location
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 325 lbs.)
Cabinet 30"
A – Overlap of oven over side of edges of cutout 11/16"-3/4"
B – Overlap of oven at top and bottom of cutout 1"
Oven
C – Overall depth* 23-1/2"
D – Overall height with trim 53-3/8"
Overall height without trim 52-7/8"
E – Overall width 29-3/4"
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.
21" minimum
Door Opening
Allowance
B
B
A
A
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Minimum cutout location
12" from the floor.
Cutout depth
23-1/2" MIN
5
47" to
bottom of
junction box
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
21
Cabinet
width 30"
C
E
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Conduit
(72"
long)
Junction box
location
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 325 lbs.)
Cabinet 30"
A – Overlap of oven over side of edges of cutout 11/16"-3/4"
B – Overlap of oven at top and bottom of cutout 1"
Oven
C – Overall depth* 23-1/2"
D – Overall height with trim 53-3/8"
Overall height without trim 52-7/8"
E Overall width 29-3/4"
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.
