ACRYLUX 60" x 30" AFR BATH KIT
AFR Bath Kit With Walls:
6030Y2AK.102 Bath Kit With Walls, Right Drain
6030Y2AK.202 Bath Kit With Walls, Left Drain
Includes the following components:
Bath Features:
• 6030Y2A AFR Bathtub
Above-oor-rough installation
High-gloss acrylic-capped ABS with
berglass reinforcement
• Integral apron with tile ange
Nominal Dimensions:
59-7/8" x 30" x 18"
(1521 x 762 x 457mm)
Door Features:
• 6000Y1.BE5.213 By-Pass Bath Door
Tempered safety glass
Silver Shine frame nish
Rain privacy glass
Nominal Dimensions:
57-1/2" to 59-1/2" x 58-3/16"
(1461 to 1511 x 1483mm)
Wall Set Features:
• 6030Y1.BW Bath Wall Set
High-gloss acrylic-capped ABS with
berglass reinforcement
Mounts directly to studs
Caulk-less installation
Nominal Dimensions:
60" to 30" x 60 tall"
(1524 to 762 x 1524mm)
AFR Bath Kit Without Walls:
6030Y2AKB.102 Bath Kit Without Walls, Right Drain
6030Y2AKB.202 Bath Kit Without Walls, Left Drain
• Same as above but without wall set
Compliance Certications -
Meets or Exceeds the Following Specications:
• ANSI Z97 for Safety Glazing Materials
• ANSI Z124.1.2 for Plastic Bathtubs and Shower Units
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density

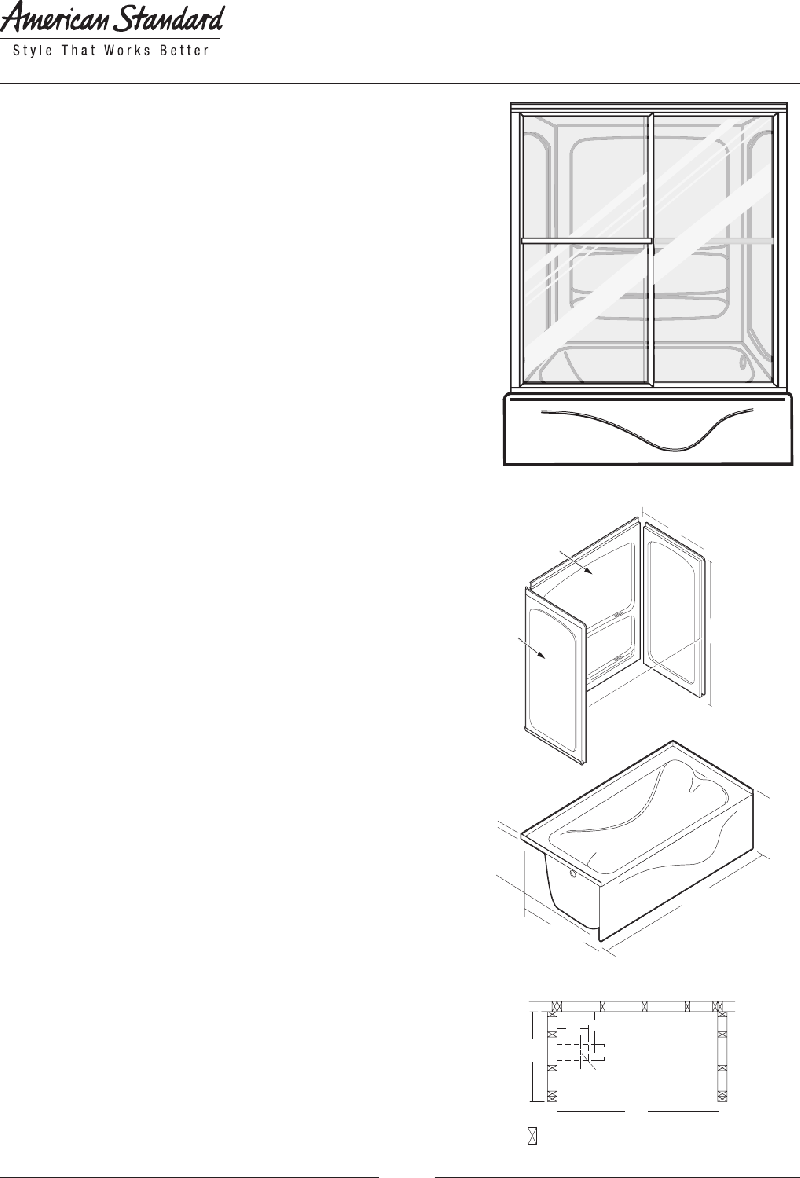

10"
STUD LAYOUT
31-1/2"
(800mm)
60"
(800mm)
(254mm)
10"
6" (154mm)
14" (355mm)
8"
(203mm)
Drain C
Floor Cut Out
6" x 10" (154 x 254mm)
= Stud Location
L
30"
58" Door Opening
(1473mm)
Side
Panel
Back Panel
30"
(762mm)
60"
(800mm)
59-7/8"
(1521mm)
30"
(762mm)
18"
(457mm)
19"
(482mm)
1"
(25mm)
ACRYLUX
60" x 30" AFR BATH KIT
Revised 10/08
