Fender Standard Precision Bass Specifications

Download Assembly of Fender Standard Precision Bass Guitar, Musical Instrument for Free or View it Online on All-Guides.com.

Brand: Fender

Category: Guitar , Musical Instrument

Type: Assembly for Fender Standard Precision Bass

Pages: 1 (0.05 Mb)

Download Fender Standard Precision Bass Assembly

Fender Standard Precision Bass Assembly - Page 1

1

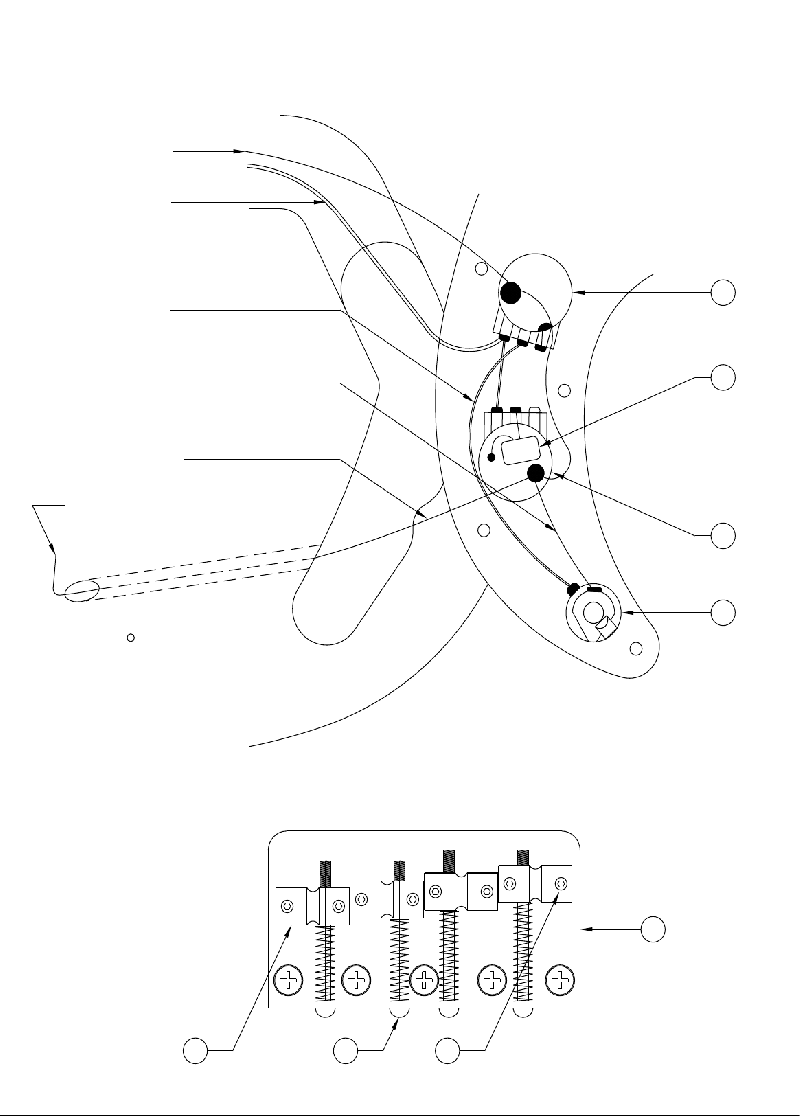

BLACK WIRE

FROM PICKUP

WHITE WIRE

STANDARD PRECISION BASS 0136000

PICKGUARD ASSEMBLY

12

11

11

.050 MFD

FROM OUTPUT JACK

WHITE WIRE

FROM OUTPUT JACK

GROUND WIRE

END OF WIRE

STRIP 3/8" FROM

TO BRIDGE.

BLACK WIRE

FROM PICKUP

15

BRIDGE ASSEMBLY

17

2019

11-5-99

Pg. 2 of 4

18
