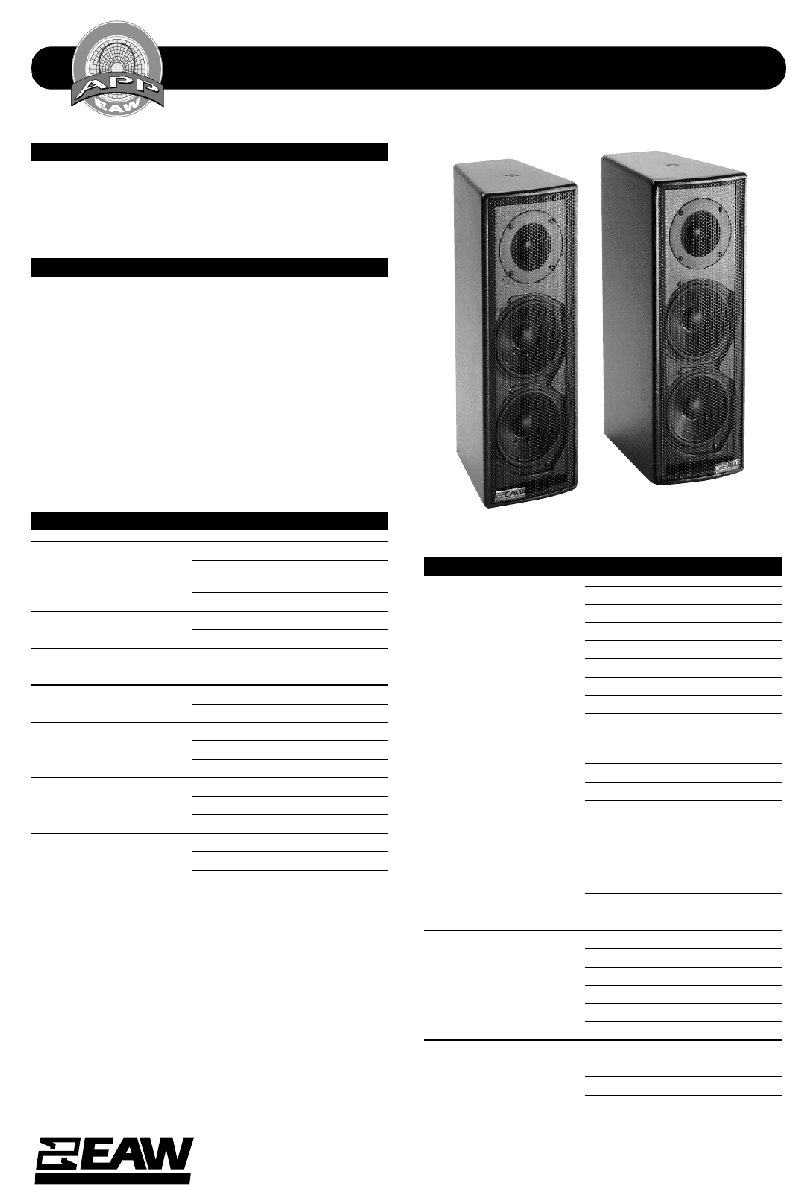

EAW JF50S Specifications - Page 1
1
EAW JF50S Specifications - Page 2
2
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [email protected] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# JF50S-888040 (A)/2 pp/1/29/99 • Printed In USA
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
SPECIFICATIONS JF50S
DESCRIPTION
A 2-way full range system (passive LF/HF crossover) in a
compact asymetrical left and right trapezoidal enclosure.
Includes 2x 5.25-in woofers and a 1-in soft dome tweeter.
Impedance is switchable: 4 Ohms or 16 Ohms.
APPLICATIONS
The JF50S is engineered for exceptional performance in the
nearfield from a compact enclosure. Left and right side driv-
ers are magnetically shielded for use on either side of video
monitors. Very effective as a fill/delay element in larger over-
all systems or for foreground/background music reproduc-
tion. Six year warranty.
Applications include:
MultiMedia
Small Retail Spaces
Presentation Suite
Small HOW’s
Theaters
PERFORMANCE
Frequency Response (Hz)
±3 db 98 Hz to 17 kHz (4 Ohm) /
111 Hz to 17 kHz (16 Ohm)
-10 dB 71 Hz
Axial Sensitivity (dB SPL/1 Watt/1m)
91
Impedance (Ohms)
4 Ohms / 16 Ohms (Switchable)
Power Handling (Watts)
AES Standard 175
Calculated Maximum Output (dB SPL, @ 1m)
Peak 119.4
Long Term 113.4
Nominal Coverage Angle / -6 dB points (degrees)
Horizontal 120
Vertical 80
Recommended Complementary Systems
Sub SB48 / SB120
Shown as Pair
PHYSICAL
Part Number 999477 (Left)
999049 (Right)
LF Subsystem & Loading 2x 5.25-in, vented
HF Subsystem & Loading 1x 1-in soft-dome tweeter
System Configuration 2-way, full range
Powering Configuration(s) Passive LF/HF crossover
Controls (switches, knobs) Impedance switch
Recommended High-Pass
Frequency (24 dB/Octave) 85Hz (4 Ohm)/100Hz (16 Ohm)
Cabinet Type (shape) Asymmetrical trapezoid
Enclosure Materials Baltic birch plywood
Finish Black catalyzed polyurethane
Connectors 2x Neutrik NL4 Speakon
Suspension Hardware (2) 3/8”-16 threaded mounting/
suspension points (1 each top and
bottom) plus (4) 1/4”-20 threaded
points to accept Omnimount Series
75
Grille Vinyl coated perforated steel
Options 980005 wallmount bracket
Dimensions inches millimeters
Height 17.93 455
Width (Front) 6.39 162
Width (Back) 4.22 107
Depth 9.72 247
Trapezoid Angle 13.2 Degrees (one side only)
Weights pounds kilograms
Net Weight 18 8.2
Shipping Weight 23 10.5
