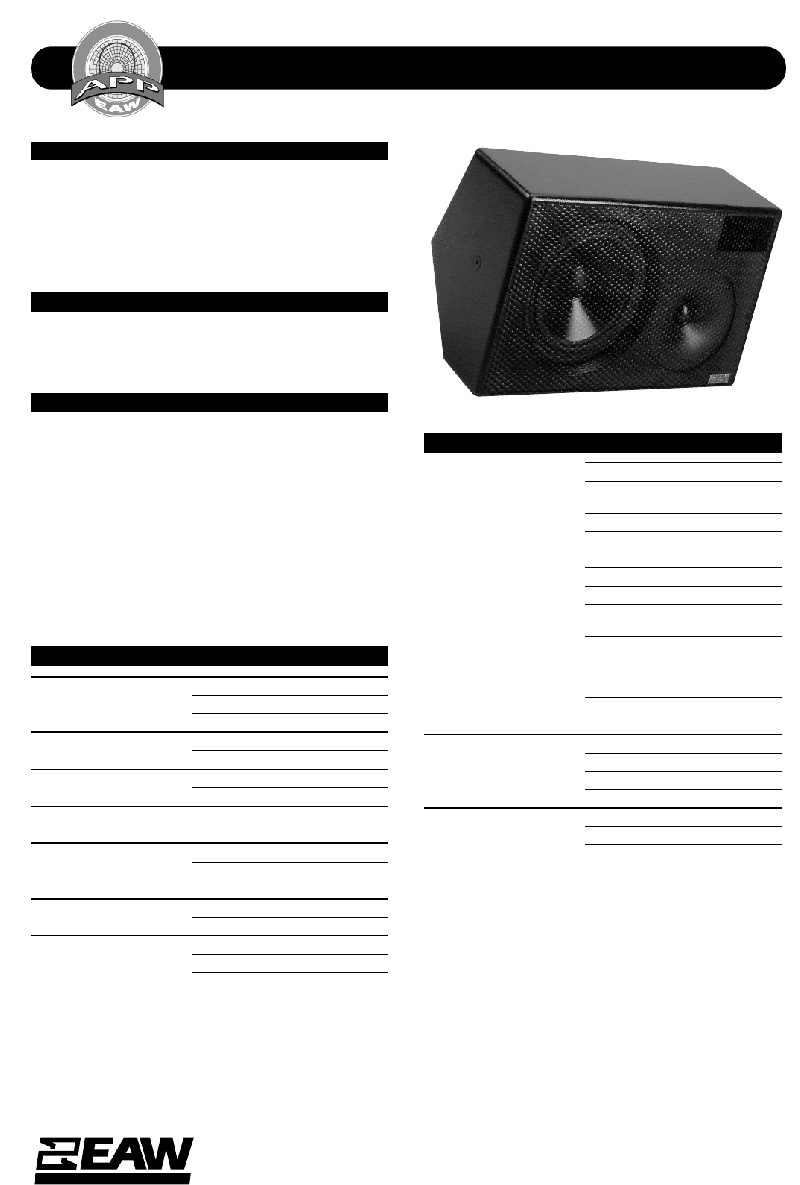

EAW UB80 Specifications - Page 1
1
EAW UB80 Specifications - Page 2
2
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email [email protected] • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# UB80-888114 (B)/2 pp/5/1/00 • Printed In USA
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
SPECIFICATIONS UB80
FEATURES
• Angled baffle, ultra two-way system
• 8-in LF/1.3-in tweeter on Wave Guide Plate™ (120°
conical coverage pattern)
• Asymmetrical enclosure mounts against wall and
ceiling
• High output, high definition sound from an
ultracompact enclosure
DESCRIPTION
A 2-way full range system (passive LF/HF crossover) in an
ultracompact asymmetrical enclosure. Includes an 8-in woofer
and a 1.3-in soft dome tweeter on a Wave Guide Plate™.
APPLICATIONS
The UB80 is engineered to provide high definition, high out-
put in demanding nearfield applications. Unique enclosure
shape offers exceptional flexibility in difficult mounting lo-
cations. Comprehensive mounting/suspension points. Six year
warranty.
Applications include:
Large Theaters (underbalcony fill/delay)
Small Theaters (underbalcony fill/delay)
MultiMedia
Boardrooms
Small HOW’s (distributed)
Large Retail Spaces (distributed)
PHYSICAL
LF Subsystem 1x 8-in cone, vented
HF Subsystem 1x 1.3-in soft dome tweeter on
Wave Guide Plate™
Configuration 2-way,full range, overhead mount
Powering Passive
Cabinet Type (shape) Irregular pentagon
Enclosure Materials Baltic birch plywood
Finish Black catalyzed polyurethane
Connectors 2x Neutrik NL4 Speakon
2-terminal barrier strip
Suspension Hardware (2) 3/8”-16 threaded suspension
points (1 per side) Plus 4 1/4”-20
threaded mounting points on back
for Omnimount Series 75
Grilel Vinyl coated perforated sheet
Mounting Bracket 980003
Dimensions Inches Millimeters
Height 11.75 298
Width 19.75 502
Depth 9.63 245
Weights Pounds Kilograms
Net Weight 45 20.5
Shipping Weight 51 23.2
PERFORMANCE
Frequency Response (1 Watt @ 1m)
±3 db 75 Hz to 17 kHz
-10 dB 55 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
92
Impedance (Ohms)
8
Power Handling, AES Standard (Watts)
180
Calculated Maximum Output (dB SPL @ 1m)
Peak 120.6
Long Term 114.6
Nominal Coverage Angle, -6 dB Points (degrees)
Conical 120
Recommended High-Pass Frequency
24 dB/Octave 50 Hz
